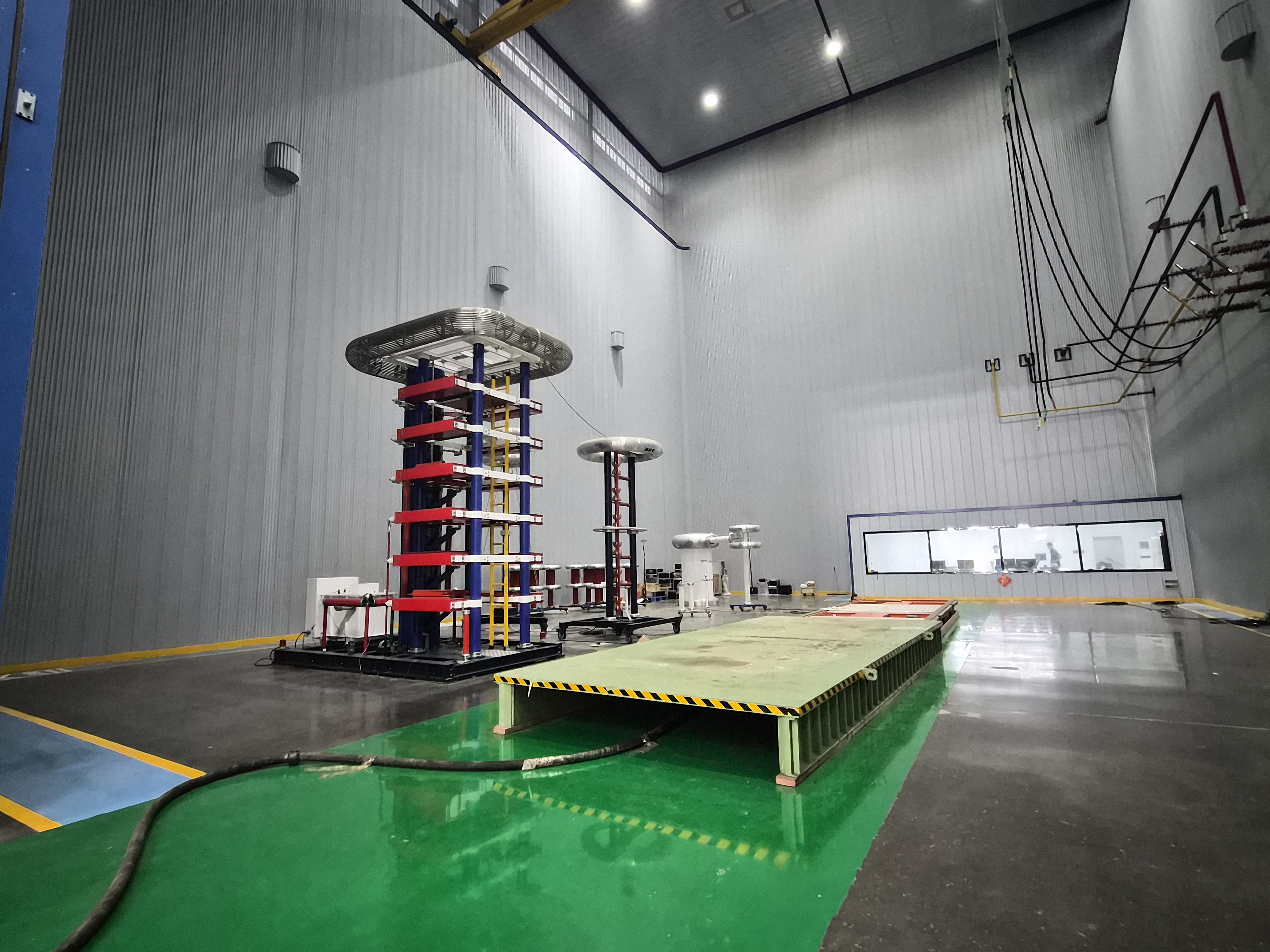

Vector Groups, Impedance Voltage & Short-Circuit Withstand: What Specifying Engineers Must Check

Why These Three Parameters Matter Most

A transformer specification sheet is typically several pages long. Most of the parameters — losses, temperature rise, sound level — affect long-term operating cost. But three parameters determine whether the unit will survive the moment of grid connection and the first major fault:

Vector group — affects how the transformer connects to your grid and how it behaves under ground faults

Impedance voltage (Uk%) — affects fault current magnitude, voltage regulation, and parallel operation capability

Short-circuit withstand capability — determines whether the transformer survives a through-fault without mechanical damage

Get any of these three wrong and the unit may pass routine testing at the factory but fail in service. This guide explains how to specify each parameter and how to verify it during FAT.

1. Vector Group

What It Means

The vector group describes two things at once:

• The winding connection (Delta, Star, or Zigzag on each side)
• The phase displacement between HV and LV side voltages, measured in clock-position multiples of 30°

For example, Dyn11 means: HV winding Delta, LV winding Star with neutral brought out, LV voltage leads HV voltage by 11 × 30° = 330° (or equivalently, lags by 30°).

Common Vector Groups and Their Uses

Vector Group	Typical Use

Dyn11	Most common for MV/LV distribution transformers feeding industrial and commercial loads; reduces 3rd-harmonic issues; allows single-phase loads on the LV side
Yyn0	LV distribution where neutral is not loaded with large single-phase currents; older installations
YNd11	Step-up at power plants feeding HV grid; delta on LV stabilizes fault currents
Dyn1	Some European grids, especially legacy networks
Ddo or YY0	Special applications like rectifier transformers
Zyn11	Reduces zero-sequence currents and is preferred where single-phase ground fault currents must be limited

How to Specify

Always confirm the vector group with your grid operator before locking the design. Common errors:

• Ordering Dyn11 when the grid requires Yyn0 — typically rejected at commissioning
• Ordering Dyn11 for a step-up transformer when the LV side is grounded (should be YNd11 instead)
• Confusing Dyn11 with Dyn1 — the difference of 30° is enough to cause parallel operation problems

How to Verify in FAT

The vector group is verified by:

• Reading the nameplate (must match the contract)
• Performing a phase-relationship test (apply three-phase LV, measure HV phase sequence and displacement)
• Polarity check on each bushing

2. Impedance Voltage (Uk%)

What It Means

Impedance voltage is the percentage of rated voltage that, when applied to a short-circuited transformer winding, causes rated current to flow. A typical MV/LV distribution transformer has Uk% in the range of 4% to 6%. A large HV power transformer may have Uk% from 8% to 14%.

Why It Matters

Impedance voltage affects:

• Voltage regulation under load — higher Uk% means larger voltage drop from no-load to full-load
• Fault current contribution — lower Uk% means higher short-circuit current, which stresses switchgear
• Parallel operation — two transformers can only operate in parallel if their Uk% ratio matches the inverse of their kVA rating ratio (e.g., for two identical units, Uk% must be equal)
• Reactive power flow — higher Uk% consumes more reactive power

How to Specify

For parallel operation, Uk% tolerance is typically ±7.5% per IEC 60076. For grid interconnection, your grid operator may specify a narrow range (e.g., 10.5% ± 0.5%) to coordinate with protection settings.

How to Verify in FAT

Impedance is measured at the principal tap and typically at the two extreme taps. The test report should include:

• Measured Uk% at each tap
• Load loss at 75°C at each tap
• Confirmation that measured Uk% falls within the contract tolerance

3. Short-Circuit Withstand Capability

What It Means

This is the ability of the transformer to withstand the mechanical and thermal stress of a through-fault (a fault on the external grid, not inside the transformer). It is governed by IEC 60076-5.

A 50MVA transformer during a typical external three-phase short-circuit may see peak currents exceeding 100kA. The windings experience massive mechanical forces; the clamping structure must hold them in place. If the design is insufficient, the unit can be destroyed in the first major fault — or worse, survive with hidden damage that leads to failure weeks later.

How to Specify

Most purchasers specify IEC 60076-5 compliance as a contractual requirement. For critical applications, a witnessed short-circuit test on a prototype unit can be arranged at an independent laboratory (KEMA, CESI, or similar), but this is expensive and rarely done for one-off projects.

A more common approach is to require the factory to provide type test certificates for similar designs that have passed short-circuit testing, and to audit the factory's design margin on the specific unit being procured.

How to Verify in FAT

Routine factory testing cannot directly verify short-circuit withstand on the individual unit — it is a design-level property, not a unit-level test. What you can verify:

• Factory has valid type test certificates covering your MVA class
• The specific design has not been altered in ways that would invalidate the type test
• Calculated short-circuit current at the LV terminals is within the transformer's nameplate Ik rating
• Clamping force and winding compression measurements (factory internal QC data)

Putting It Together: A Specifying Engineer's Checklist

Before issuing a transformer purchase order, confirm:

Vector group matches the grid operator's requirement, including a written confirmation on file

Impedance voltage (Uk%) is specified with a tolerance, and is suitable for parallel operation (if applicable)

Short-circuit withstand is specified as IEC 60076-5 compliance, with type test certificates attached

Tap range and side are correctly specified for your grid voltage variation

BIL rating matches your system's overvoltage protection scheme

These five items account for the majority of in-service transformer failures traced back to specification errors.
